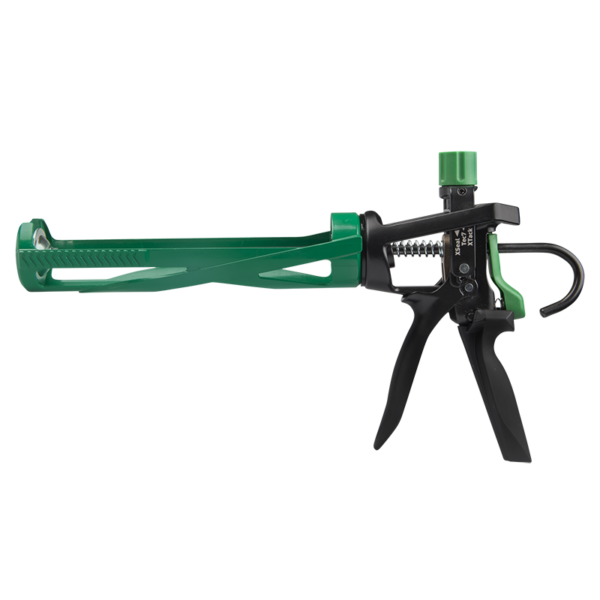

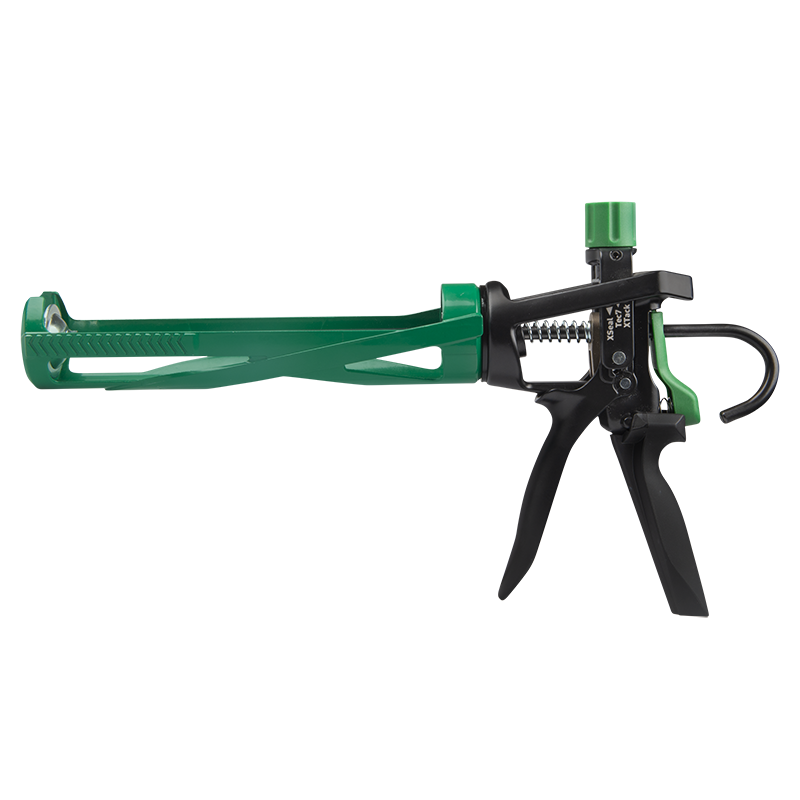

MULTIGUN

Gun with stepless adjustable power transmission from 12/1 for the clean application of light, flexible sealant up to 25/1 for easy pumping of heavy adhesive, 2K adhesive or a chemical anchor and everything in between depending on the application. Heavy duty materials for a long life and a treated steel rod with hanging hook. Ergonomically balanced for optimal relief of fingers and wrists and a rotating tube holder to position the nozzle in the right angle.

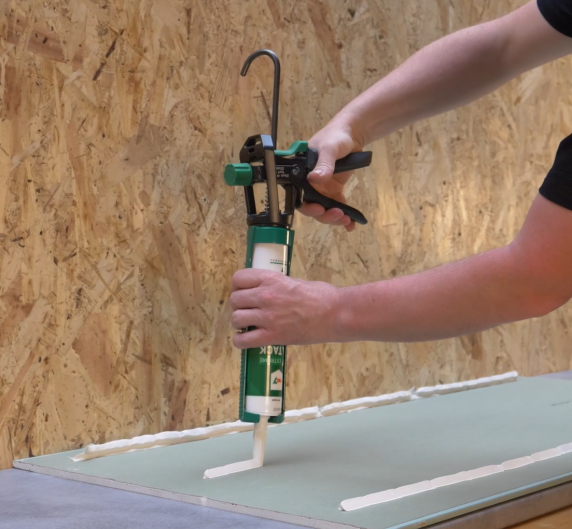

USER INSTRUCTIONS

1. Open the cartridge and screw on the nozzle.
2. Cut off the nozzle to the required size.
3. Place the cartridge in the holder (extractor at the back).
4. Turn the adjustment knob to the desired position.

The gear ratio can be read on the side under the adjustment knob.

• 12/1: X-Seal
• 18/1: Tec7
• 25/1: X-Tack

CARTRIDGE GUN WITH ADJUSTABLE POWER TRANSMISSION

• Stepless power setting from 12/1 to 25/1.
• For light sealants and heavy adhesives in standard tube.
• Ergonomic lightweight design.
• Rotatable tube holder.
